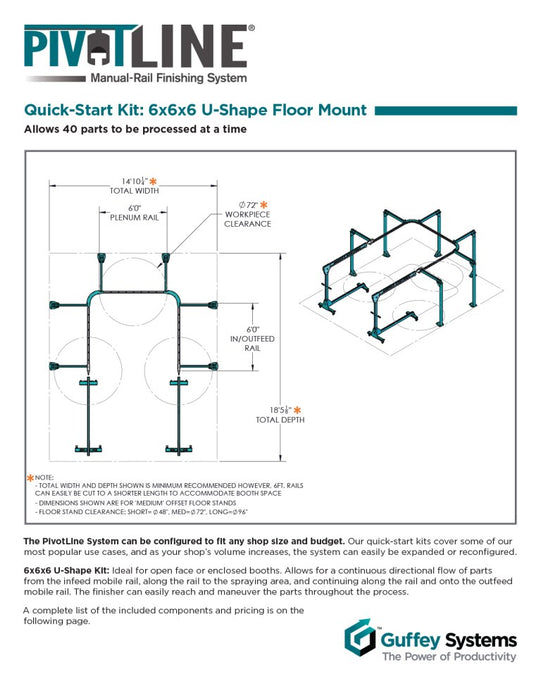

PivotLine Quick-Start Kit: 6x6x6 U-Shape Floor Mount
Allows 40 parts to be processed at a time
The PivotLine System can be configured to fit any shop size and budget. Our quick-start kits cover some of our most popular use cases, and as your shop's volume increases, the system can easily be expanded or reconfigured.
6x6x6 U-Shape Kit: Ideal for open face or enclosed booths. Allows for a continuous directional flow of parts from the infeed mobile rail, along the rail to the spraying area, and continuing along the rail and onto the outfeed mobile rail. The finisher can easily reach and maneuver the parts throughout the process.
A complete list of the included components and pricing is on the following page.
Guffey Systems
The Power of Productivity
Components and Pricing
| Description | Qty | Rate | Amt |
|---|---|---|---|
| PivotLine Stationary Rail Kit 6x6x6 U-Shape Complete 3 - Aluminum rails - 6 ft. length 2 - Rail Corners 90° 1 ft. Radius |
1 | $2,690.00 | $2,690.00 |
| Mobile Rail Used for loading, off-loading, drying, and storage of parts. A key component for maximizing PivotLine efficiency and reducing material handling |
1 | $2,150.00 | $2,150.00 |
| Mobile Rail Used for loading, off-loading, drying, and storage of parts. A key component for maximizing PivotLine efficiency and reducing material handling |
1 | $2,150.00 | $2,150.00 |
| Rolling Spray Hub Rolls smoothly and pivots in 90° increments allowing for easy spraying of all sides |
20 | $84.00 | $1,680.00 |
| Twist Stop Insert into stationary and mobile rails to prevent unwanted movement of materials |
4 | $89.00 | $356.00 |
| T-Bar - Short (17") Hang doors using EFC or Offset Hangers. Group multiple parts together by hanging Offset and Universal Hangers across top of T-Bars |
6 | $25.00 | $150.00 |
| T-Bar - Medium (34") Hang doors using EFC or Offset Hangers. Group multiple parts together by hanging Offset and Universal Hangers across top of T-Bars |
8 | $42.00 | $336.00 |
| T-Bar - Large (46") Hang doors using EFC or Offset Hangers. Group multiple parts together by hanging Offset and Universal Hangers across top of T-Bars |
6 | $56.00 | $336.00 |
| Offset Hanger w/screws For hanging drawer fronts, face frames, and other miscellaneous components |
20 | $11.20 | $224.00 |
| Universal Hanger w/screws For hanging shelves, face frames, and other miscellaneous components |
10 | $11.20 | $112.00 |
| EFC (Spring Clip) For hanging panels from hinge pockets to hang on T-Bars |
60 | $1.50 | $90.00 |
| Floor Stand - Comes with 1 of 3 optional stand-off arm sizes Stand-off arm size determines the clearance and size of materials that can be rotated without making contact: Small (48" max material width), Medium (72" max material width), Large (48" max material width) |
6 | $615.00 | $3,690.00 |
| Subtotal | $13,964.00 | ||
| Shipping & Handling | $0.00 | ||
| Discount | $0.00 | ||
| Tax | $0.00 | ||
| Total | $13,964.00 | ||
Note: 6 ft. rails can easily be cut to shorter length if needed
*Stand-off arm size must be specified before order can be processed
