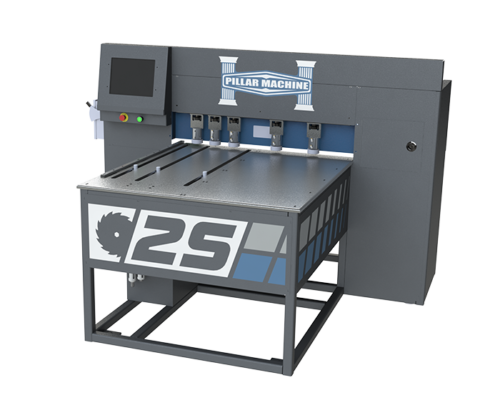

Pillar Machine | 2S – Panel Sizing and Squaring Machine

The 2S is a multi-axis, mulit-function CNC horizonal machine. It is designed to size edge glued panels safely and accurately.

This raised panel door machine can also be Pillar-Linked to any order entry program and scan bar codes to virtually eliminate the need for the operator to do anything other than load the part to be cut.
One of the greatest features of the 2S is the safety factor. The potential risk of getting any fingers in the way of the saw blade is nearly non-existent. The design of the machine itself along with the process of how an operator uses the machine keeps hands clear of the moving blade during proper use.

This raised panel door machine has touch screen controls to enter the panel dimension and control the CNC fence positioning. Once a panel size is entered it takes about 30 seconds to size the panel to the correct dimension.  All scrap is removed automatically allowing the operator to concentrate on producing product.

The 2S peforms the following functions:

• Sizing
• Squaring

Standard Features:

• 15″ industrial color touchscreen for creating and selecting programs
• 42″ x 42″ x 1″ thick solid aluminum table
• 4 clamping units
• Saw
• Drop down side fence for referencing
• Programmable pop up pins for end referencing
• Scrap material removal

Advantages of The 2S:

• Safe
• Quick
• Accurate
• Simple to use

Options:

• Pillar-Link
• Bar code reader
• Larger Table
