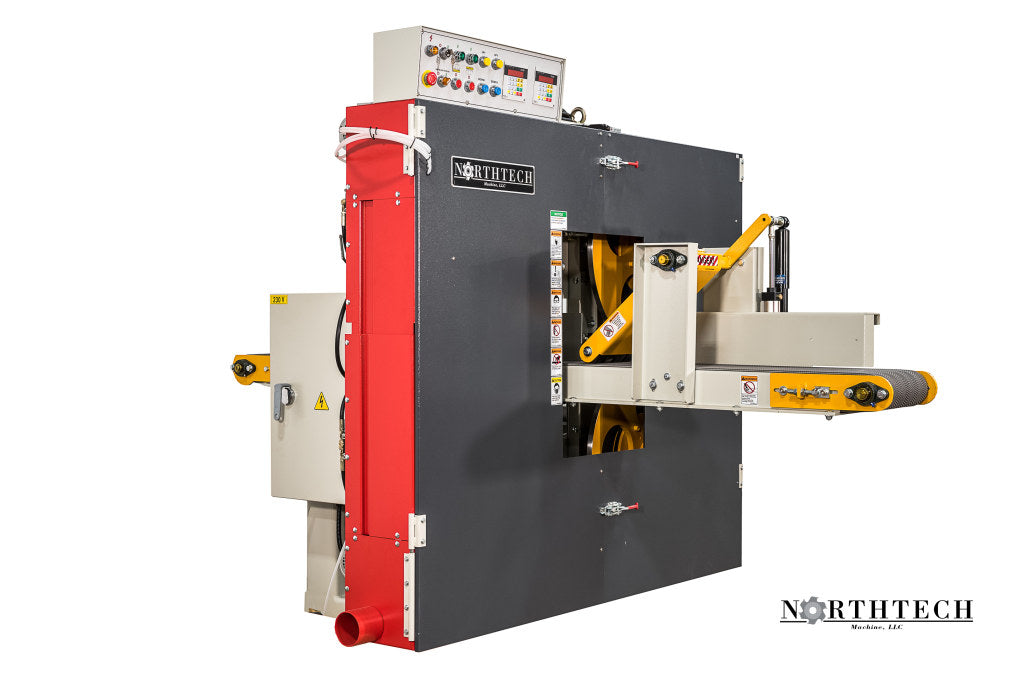

NORTHTECH MACHINE | NT-HBR250BS-2A HORIZONTAL BAND RESAW TWO HEAD

The Northtech HBR250BS-2A is a (2) headed resaw. The top over bottom design not only reduces machine footprint when compared to a traditional multi-head resaw but it relieves stress at the same point for 2 cuts which results in a greater amount thickness consistency on outbound parts. Fabricated with a heavy-duty steel frame that can handle multiple shift operations and a functional simplicity that makes it easy to operate. Full access double door guards and digital head positioning allows quicker change overs with 2x the production output.

TOP HEAD HP: 20 HP
BOTTOM HEAD HP: 20 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 3 Phase
AMP REQUIREMENT: 108/54 Amps
FEED HP: 2 Hp
FEED SYSTEM: Feed Mat
DRIVE SYSTEM: Hydraulic Pump
FEED SPEED RANGE: 0-80 FPM
VARIABLE FEED SPEED: Hydraulic Knob Adjustment
ELEVATION HP: (2) 1/4 HP
ELEVATION STYLE: Jack Screw Rail Slide System
ELEVATION SYSTEM: CH525 Digital Controller
TOTAL MACHINE HP: 42.5 HP
APPROVED ELECTRICAL PARTS: CE Approved Components
