ALTENDORF HEBROCK | F 2 Edgebander

Maximum performance in the smallest spaces

The compact powerhouse

Do your customers have high demands? Consider it taken care of. That’s because the F 2 edge banding machine lets you deliver perfect edges to your customers, piece by piece.

Premium quality really is this convincing: the F 2 is the perfect entry-level model of our powerhouse units. You’ll be impressed by its innovative features and compact design. Make room in your workshop for the F 2 from ALTENDORF HEBROCK!

Main Features

Technical Features

• Feed speed 10 m/min
• Greater flexibility of workpiece length
• Higher cover
• Greater ease of use
• Optional flat scraper
• Compact frame design

Benefits

• Interchangeable glue pot can be heated in 3.5 mins
• 3D graphic symbols
• WhisperCut with interchangeable DIA tools

Software/Control

• 15“ LED touchscreen
• Easy-to-read display with integrated 3D feature
• Revolving and tilting control system
• USB interface
• Meter and running time counter
• Resistant to dust

Main Features

Pre-milling cutter (WhisperCut)

The WhisperCut jointing system with interchangeable diamond cutting points ensures maximum tool life (manual height adjustment) and tear-free milling results due to an oblique cut through the centre of the panel. Two ready-to-use cutter heads guarantee tear-free milling results, even for demanding materials and surfaces.

By simply swapping the diamond cutting points, this significantly reduces sharpening costs and downtime and no changes to the basic machine settings are required unlike with classic tools. The lightweight aluminium design protects the motors and enhances smooth operation.
The milling depth can be manually adjusted up to 2.0 mm so that you can work to the final dimensions when cutting.

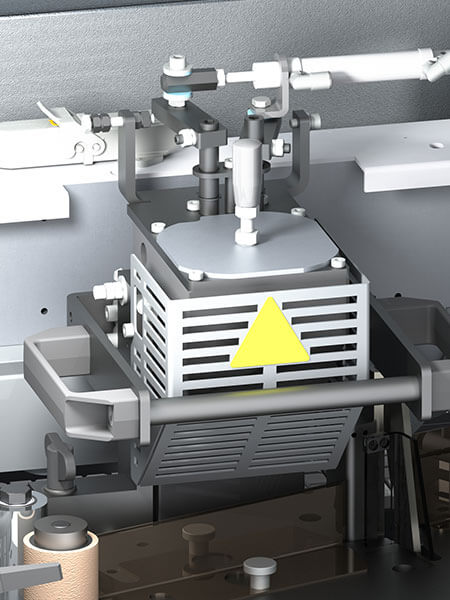

Change over quick heating pot

• Ready for operation in just 3.5 minutes
• Standard interchangeable glue pots with stop function for rapid change of colour or technology (EVA/PUR)
• Tool-free change of glue pot
• Simplified cleaning of glue pot in a matter of minutes
• Teflon coating for effortless cleaning

Pressure zone

These 3 spring-loaded pressure rollers apply optimum pressure to the banded edges. Adhesive residue or dirt can be easily removed thanks to their coating.

Trim saw station

The stable design of the single-motor cross-cut saw with linear guides enables precise sawing of the front and rear workpieces. Simply choose the setting via the touchscreen display on the front of the machine.

Milling station

This combination milling unit allows you to choose between the different machining procedures: Radius / 10° chamfer and flush milling (combination version). The standard setting is conveniently selected via the display on the front of the machine.

Cleaning agent spraying unit

This spray system applies the cleaning agent to the top and bottom of the workpiece. By applying the cleaning agent, this removes both the separating agent already applied and any impurities or adhesive residue on the panel surface.

Surface scraper

Dynamically stored flat scraper ensures high production quality
even for difficult materials. The wide contact surface precisely and gently scans the edge material to ensure consistent quality and removes adhesive residue and excess edges.

More Features

Release agent spraying unit

By applying the separating agent to the top and bottom of the workpiece, this prevents any excess adhesive residue from sticking to the workpiece Prior to edging, the spray system casts a fine layer of separating agent over the top and bottom of the workpiece edges. This prevents any excess adhesive from sticking to the workpiece. This option is recommended if regularly working with PUR adhesives.

Protection spraying unit

The lubricant is sprayed onto the edge surface via an additional fine nozzle to prevent damage to sensitive edges or the removal of film due to sensing rollers and sensing shoes.

Pneumatic 3-point adjustment

By upgrading the milling to 3-point adjustment, the radius, chamfer and flush milling (combination blade) can be selected via the display. As a result, protective covers remain closed and this minimises set-up time.

Indoor LED illumination

Interior machine lighting for clear setup and maintenance of your machine.

Wheels

The warp-resistant machine base unit allows precise working for years to come. Whether mass production of small parts or half-size panels, we guarantee a consistent finish each time you work. A well-thought-out extraction system, which requires just one central connection point to your extraction system, allows mostly mobile use of your HEBROCK edge banding machine even in small workshops. All inlet and outlets are found on the machine so that it can be moved as needed using our optional trolley for space-consuming work.

Nesting for milling station and radius scraper

Allows working with tool sharpening and pinhole drilling with a milling unit and radius scraper. The settings can be easily changed via the display on the front of the machine. Scanning of the workpieces takes place underneath the panel.

LED-Touchscreen

You can intuitively set up your machine via the 15” touchscreen on the front and view all key information at a glance. The 40 channels allow you to store, modify and repeat individual settings. The 3D feature provides a visual representation of the front and back of your final workpiece. You can clearly record key parameters such as workpiece quantity, linear metre and duration and assign them to your commissions.

Plain text notifications inform you of the current status of your machine, which simplifies the maintenance process.

ECO-Mode

This energy-saving mode is an automatic standby mode that disables all systems. If a workpiece is not fed into the machine for a longer period of time (15 minutes), the machine, including heating of the glue pot system, will automatically switch off. The machine consumes almost no energy.

Specifications

Basic Features

• Manual adjustment of edge and pre-milling thickness
• SPS control (including 15” touchscreen)
• Glue application to the workpiece for edge material up to 3 mm
• Support plate for the edge material
• Visual display for workpiece sequence using LEDs at machine inlet
• Pre-milling cutter (including DIA tool) up to 2 mm jointing cutter depth with interchangeable blade design (WhisperCut)
• Overhead changeable glue pot with Teflon coating and glue-changing device
• Trim saw for precise processing of front and rear edge workpiece
• HF milling station with pneumatic milling adjustment and combi-blade system (radius/chamfer/flush)
• Conveyor chain with screw-fixed special chain plates
• Double roller overhead pressure system (ball-bearing mounted)
• Workpiece support (folds out to front)
• Viewing window on the rear of the machine
• Feed speed approx. 10 m/min
