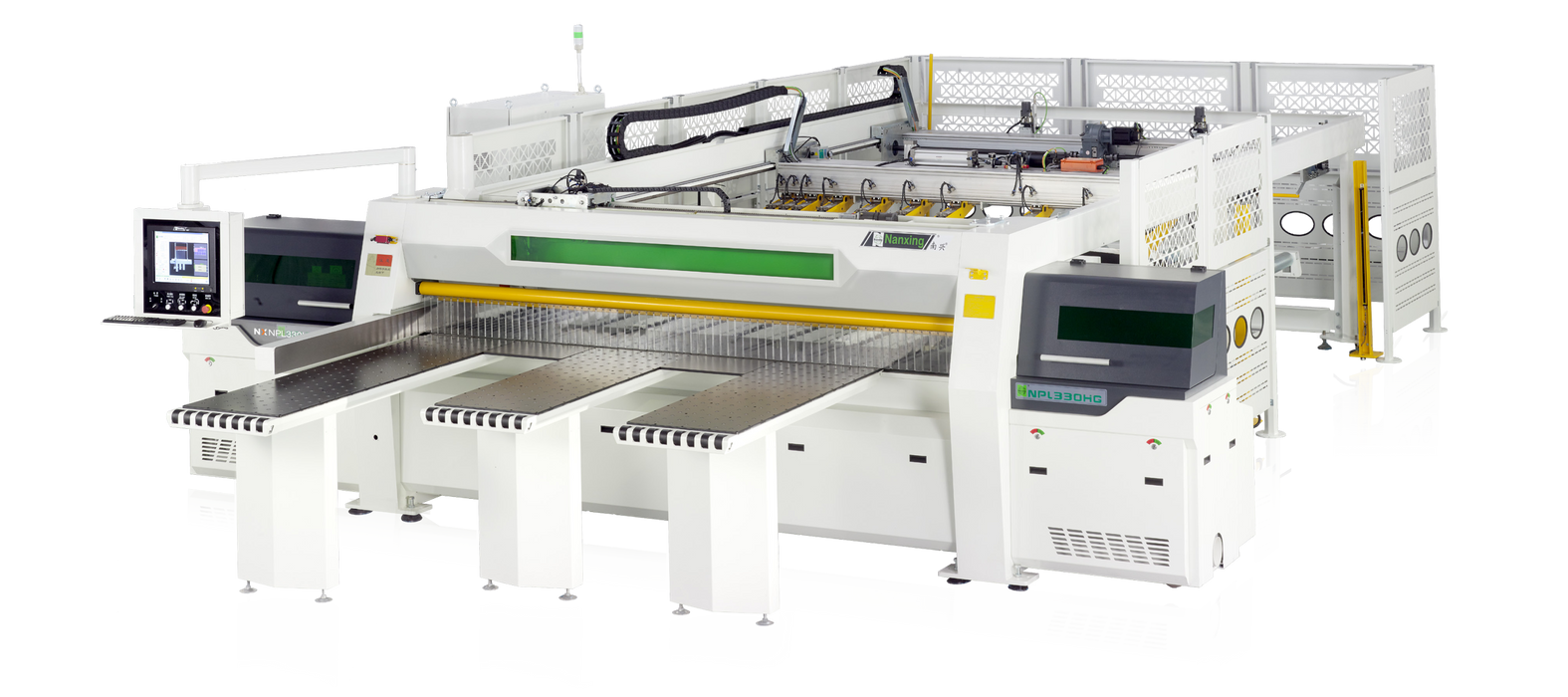

Giben | NPL 330 HG
NPL 330HG FEATURES:
-
Automatically alignment by independent side pressing rollers to cut right angle.
-
Main saw and scoring saw with independent movements of up and down. Main saw automatically self-adjusts minimizing the lifting height for efficiency providing best finish.
-
Saw carriage with 2 kw servo motor. Rack and pinion, automatically moves to fit; based on the width of panel, reducing travel distance.
-
Hydraulic rear feeding lift table with maximum 5t loading capacity, combined with powered and non-powered conveyors making it convenient to feed panels from left, or right side
-
Easy to use software manages work process with detailed reports, simulating cutting patterns, showing any error message, printing bar code and many more advantages, also user-friendly HMI.
Specifications
| Model | NPL330HG |
|---|---|
| Cutting length | 3300mm |
| Cutting thickness | 120mm |
| Main saw rotating speed | 3910rpm |
| Scoring saw rotating speed | 4150rpm |
| Saw carriage forward speed | 90 m/min |
| Saw carriage backward speed | 120 m/min |
| Main saw motor | 18kw |
| Auto feeding speed | 85 m/min |
| Rear feeding speed | 60m/min |
| Dust extraction | φ150mm×3 |
| Total power | 40kw |
| Overall size | 9400x9200x2020mm |
| Net weight | 12200kg |
