CANTEK | MX350 Automatic Edgebander

High quality edge banding results for cabinet parts and case goods.

The Cantek MX350 Automatic Edgebander is a compact edgebander capable of applying up to 3mm thick edge tape on cabinet parts and more. The counter rotating pre-milling cutters ensure optimum panel edge quality and squareness which result in a less visible glue joint. It comes equipped with high frequency motors on both the end trim and top & bottom trim. In addition it is equipped with PVC radius scraping and buffing units. User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm. It’s compact design and affordable price point make it the ideal edge banding solution for the small cabinet shop who requires pre-milling.

Why Cantek MX350 Automatic Edgebander?

• Versatile edgebander capable of applying 0.4mm to 3mm edge tape.
• Quick change glue pot allows you to change glue colours in minutes.
• Couter rotating diamond premilling cutters produce optimum panel edge for superior edgebanding results
• High frequency end trim & flush trim motors produce fine edge finishing results
• Multi-function trimmers allows for flush or radius trimming on edge banding
• Radius scraping removes any knife marks on radius edges
• Buffing unit polishes the edge
• Powerful chain feed system ensure work piece stability during application and processing of edge banding resulting in a high quality finish

Key Advantages

• Teflon coated Quick Change glue pot can be removed and exchanged in only minutes. Comes with (1) quick change pot and others can be acquired for running different color glues.
• Automatic edge feeding with a thickness capacity of 0.4–3 mm; strip material can be hand-fed
• Conveyor chain feed system for reliable results
• Heated infeed fence for pre-heating the panel for optimum glue penetration
• PLC control system with LED display and keypad
• Workpiece is fed by chain
• Edge coil support plate: Ø 800mm (31 ½”), for PVC/ABS
• Spring-loaded pressure unit with (2) pressure rollers
• Heavy-duty pressure beam with extendable workpiece support

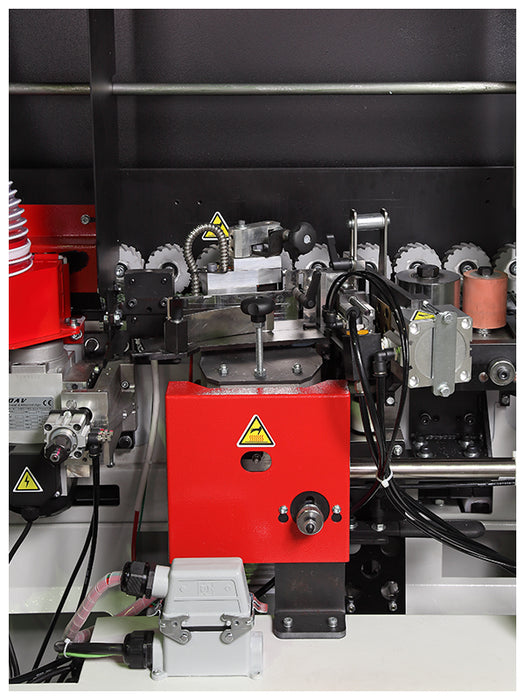

Working Units

• PREMILLING UNIT
  High-frequency pre-milling units can remove up to 3mm and is designed to provide an ideal edge for applying edge tape by cleaning up poorly cut panels
  (2) counter-rotating diamond cutterheads for optimum results and longevity
• END TRIM
  High frequency 12000 RPM end trimming unit, with Ø100mm (4”) TC-Saw blades
• TOP & BOTTOM TRIM
  High frequency 12000 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming
• RADIUS SCRAPING
  Radius scraper with 2mm radius
• BUFFING
  3000 RPM top & bottom buffing units to polish the machined edge
