Anderson | Exxact Duo

EXXACT Duo Series

About the EXXACT-Series

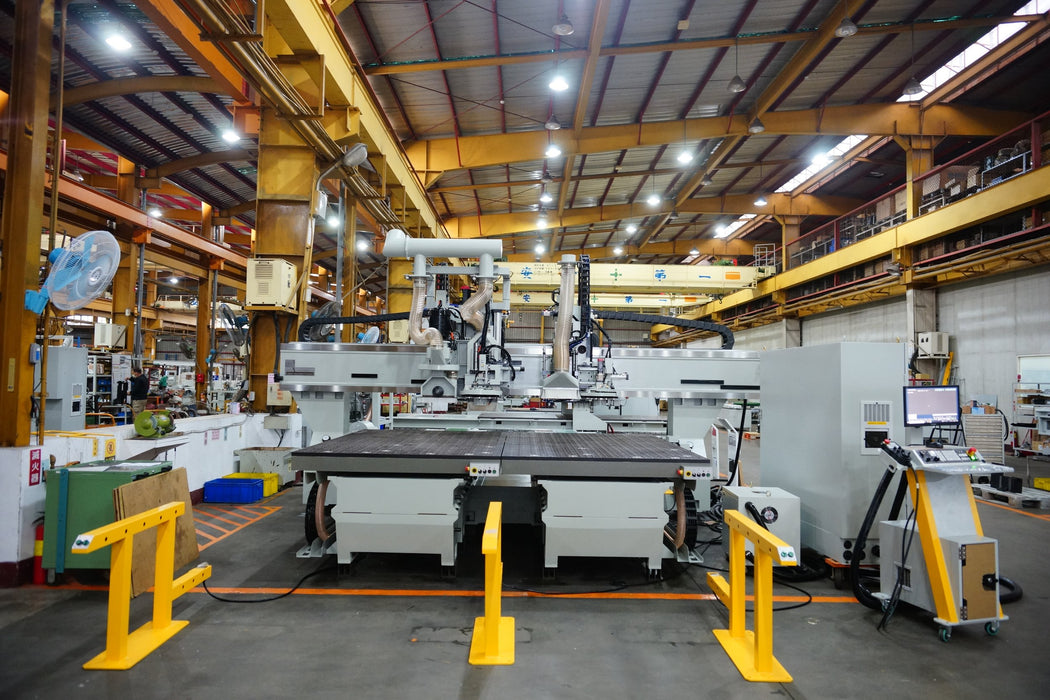

The EXXACT Series Moving Table 3-axis machining centers set a new level of CNC accuracy and machining performance. The combination of a highly rigid base, steel weldments and castings and high accuracy Servo System make the EXXACT an ideal choice for machining wood, MDF, plywood, plastic, aluminum and composite materials.

The Anderson fixed bridge and moving table design provides easy machine access. The webbed steel substructure remains smooth and rigid while cutting in X, Y and Z-axis. The EXXACT CNC machining centers set a new standard in high speed CNC machining as it is designed to handle heavy duty CNC machining in various thicknesses flat and aluminum plate. CNC Controls include Ethernet options to provide remote technical support; optional C-axis is available. Work piece holding flexibility is provided by optional clamping, grid or manifold vacuum systems. The EXXACT CNC Machining Center utilizes an industry standard G-code for control functions that allows easy interfacing with all major CAD/CAM software and industry standard solid modeling software packages.

Features:

TC

One ANDI HSK-63F spindle with 10 position tool carousel. Standard spindle configuration is a 15 HP Air cooled dynamic (travels with spindle) router spindle 0-24000 rpm. 10, 12 or 16- position automatic tool changers are options. Robotic Arm Tool Changer and Water Cooled spindle versions are available.

TC+D

One ANDI HSK-63F spindle with 10-position tool carousel and one 32 mm 5×5 Vertical Drill Block.

Optional horizontal drills and grooving saw.

TC2

Two ANDI HSK-63F spindles each with 10- position tool carousel.

TC2+D

Two ANDI HSK-63F spindles with 10-position tool carousel.

One 32 mm 5×5 Vertical Drill Block.

TC2+D2

Two ANDI HSK-63F spindles with 10-position tool carousel.

Two 32 mm 5×5 Vertical Drill Block
