Giben | NB332
by Giben
Original price
$50,000.00
-
Original price
$50,000.00
Original price
$50,000.00
$50,000.00
-
$50,000.00
Current price
$50,000.00
NB332 FEATURES:
Maximize Productivity ◼ Reliable ◼ Versatile
-

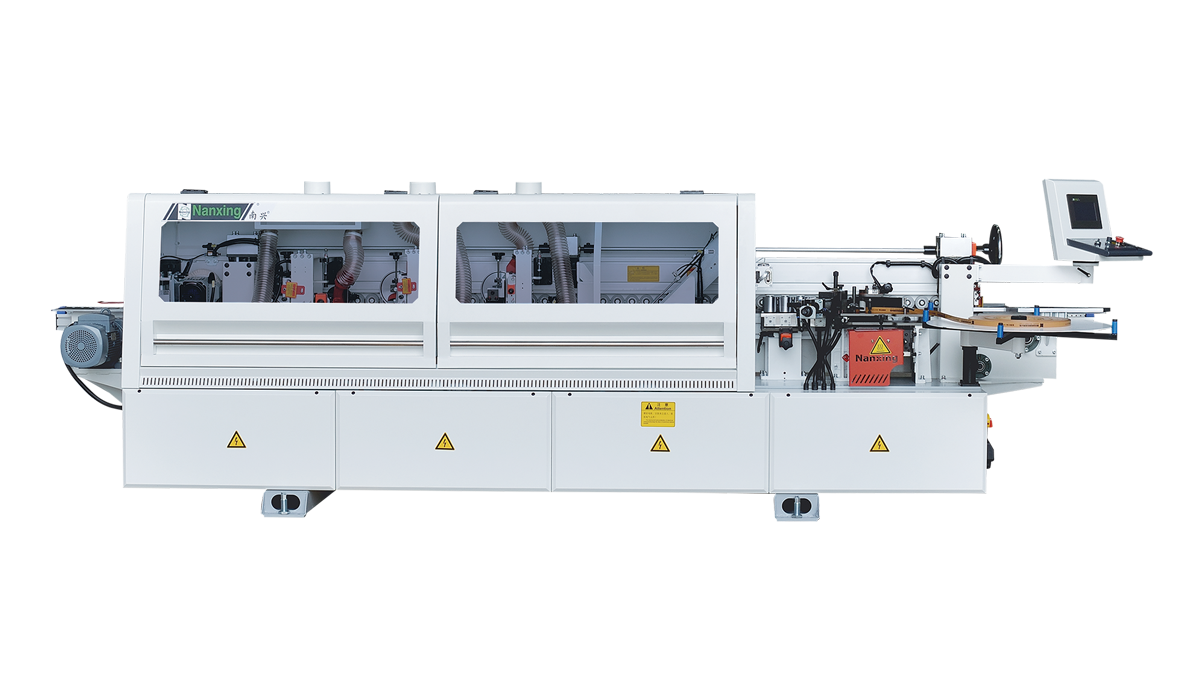

A heavy-duty edge bander made for production shops. A solid steel structure along with thick steel plate going from front to back of the machine that the stations mount.
-
Speeds ranging from 16-24 m/min to produce parts when needed on time.
-
Stations included on the edge bander are: glue pot, end trim, fine trim, profile scraping, and buffing.
-
PC controlled with bar code reading capability and diagnostic monitoring system.
-
Small compact frame to fit in any shop.
-
Stand-by mode when not in use to allow for quick restart.
Specifications
| Model | NB332 |
|---|---|
| Panel Length | ≥ 120 mm |
| Panel Width | ≥ 60 mm |
| Min. Panel Size | 120 x 60 mm |
| Panel Thickness | 10-60 mm |
| Tape Thickness | 0.4-3 mm |
| Feeding Speed | 16/20/24 m/min |
| Power Supply | 380 v; 50Hz |
| Air Pressure Required | 0.7MPa |
| Operation System | 7” Touch screen |
| Dust Collector | Φ 125mm x 4 |
| Total Power | 13.3 Kw |
| Approx. Weight | 4,6 lbs |
| Overall Dimension | 16.5’ x 4.13’ x 4.7’ |
