Giben | KG 468GH
by Giben
Original price
$50,000.00
-
Original price
$50,000.00
Original price
$50,000.00
$50,000.00
-
$50,000.00
Current price
$50,000.00
KG 468GH FEATURES:
-

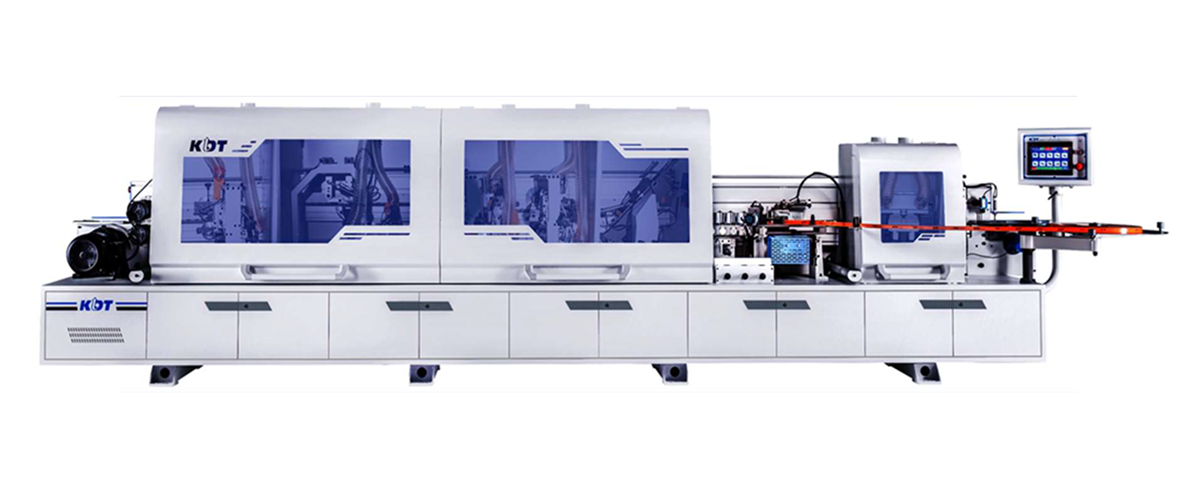

A heavy-duty edge bander made for production shops.
A solid steel structure along with thick steel plate going
from front to back of the machine that the stations mount. -
Speeds ranging from 16-24 m/min to produce parts
when needed on time. -
Stations included on the edge bander are: glue pot, end
trim, fine trim, profile scraping, and buffing. -
PC controlled with bar code reading capability and diagnostic
monitoring system. -
Small compact frame to fit in any shop.
-
Stand-by mode when not in use to allow for quick restart.
Specifications
| Model | KG 468GH |
|---|---|
| Panel Length | ≥ 120 mm |
| Panel Width | ≥ 95 mm |
| Min. Panel Size | 120 x 95 mm |
| Panel Thickness | 10-60 mm |
| Tape Thickness | 0.4-3 mm |
| Feeding Speed | 15/23 m/min |
| Power Supply | 220 v; 60Hz |
| Air Pressure Required | 0.7MPa |
| Operation System | 7” Touch screen |
| Dust Collector | Φ 125mm x 4 |
| Total Power | 22.4 Kw |
| Approx. Weight | 5,400 lbs |
| Overall Dimension | 24’ x 4.75’ x 5.4’ |
